Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction

  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
  • Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction
Herkunftsort Guangdong, China
Markenname Goldantell/OEM
Modellnummer Reihe GAT-206
Min Bestellmenge 1
Preis $680-1,127

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

Was ist das?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Bei Bedenken bieten wir rund um die Uhr Online-Hilfe an.

x
Produktdetails
Zugangskontrolle RFID-Karte, IC, Personalausweis, Barcode Öffnungszeit der Barriere 0,2 s
Kommunikationsschnittstelle RS-232, RS485 Betriebsrichtung 2-Wege
Barrieremotor Bürstenloser Motor Schutzniveau IP54
Gehäusegröße 1200*280*1000mm Nettogewicht 150 kg
Material 1,5-2 mm, 304# Edelstahl Übergabegeschwindigkeit 30-40 Personen/min
Luftfeuchtigkeit < 95 %, ohne Konkretion Temperatur -15 bis 75 Grad
Stromverbrauch AC220V, 50Hz oder AC110V, 60Hz Kanalbreite 500-600mm
MCBF 2.500.000 Zyklus
Hervorheben

0.2s Barrier Open/Close Time Security Turnstile Gate

,

RS-232 and RS485 Communication Interface Flap Barrier

,

2-Way Operation Direction Automatic Turnstile
Hinterlass eine Nachricht
Produkt-Beschreibung
Security Passage Supermarket Entrance Intelligent Automatic Turnstile Electronic Gate Flap Barrier

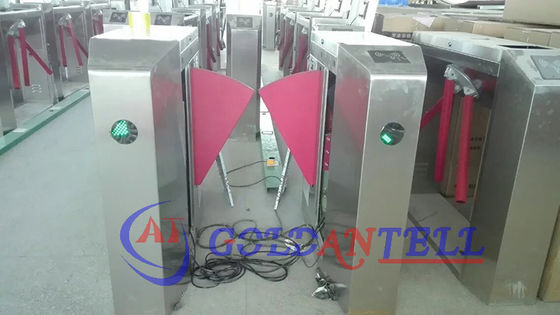

Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 0 Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 1
Technology Specifications
Power consumption AC220V, 50Hz or AC110V, 60Hz (optional)
Housing Size 1200*280*1000mm
Housing material 1.5-2mm, 304# stainless steel, corrosion resistant
N.W. 150KG
Drive motor DC brushless motor
Channel width 500--600mm
Pass speed 30-40 persons/min
IP protection IP54
Input signal optional DC12V/dry/contact/RS485/RS232/Remote
Railing-off against power off Yes
Working environment temperature -15°C to 75 °C
Working environments indoor, outdoor
Relative humidity ≤95% coagulation free
MCBF 2,500,000 cycle
Flap Barrier Functions and Features
  1. Problem-self-checking function
  2. Multiple working modes including bi-directional card reading and photocell controlled passing
  3. Automatic arm opening during power failure and automatic holding when power returns
  4. Adjustable arm closing delay from 1-60 seconds
  5. Auto-reposition function cancels passing rights after timeout
  6. Alarm system for unauthorized passage attempts
  7. 485 interfaces for long-distance control
  8. Anti-rush function maintains arm position without open signal
  9. Dual anti-clipping protection (photocell and mechanical)
  10. Standard electrical interface for reader/writer integration
  11. Passenger counting with LED display
  12. Direction display for passenger guidance
  13. Card-reading with optional memory function
  14. Population control via software
  15. Quiet, stable operation
Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 2
About Shenzhen Goldantell Technologies Co., Ltd

We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems.

We have exported to more than 50 countries and established long-term partnerships with clients worldwide.

Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 3

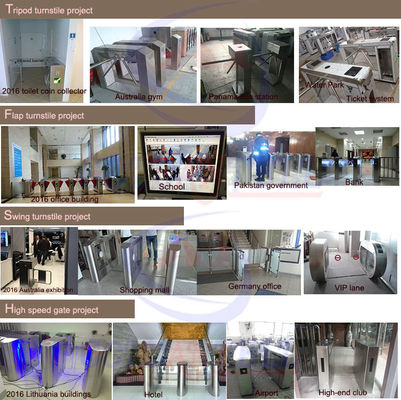

Global Customer Base

Our turnstiles have been sold to over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, and throughout Europe, Asia, Africa, and the Middle East.

Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 4
Trade Terms
  • 30-day valid offer
  • Delivery within 7 days after payment
  • Payment methods: T/T, LC, Western Union, Escrow, PayPal
  • Packaging: Carton box + wooden case/crate
Delivery Options
  • Sea freight: 15-60 days depending on destination
  • Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
  • Air cargo: 2-7 days
Our Services
  • 24-hour response to inquiries
  • English-speaking sales and support team
  • OEM services including custom branding and packaging
  • Expert engineering support
Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 5
Pre-sale & After-sale Service
  • Pre-sale consultation to understand your requirements
  • Production updates with photos and testing videos
  • Comprehensive installation and usage guidance
  • Custom OEM/ODM solutions
  • 16-hour response time for support
Contact Details

Contact person: Vivian Zhou

WhatsApp: +86 13699796334

Wechat: junziyouxin

Skype: goldantell02

Security Turnstile Gate with 0.2s Barrier Open/Close Time RS-232 and RS485 Communication Interface and 2-Way Operation Direction 6

Goldantell turnstiles - factory price, high quality, welcome your inquiry!
