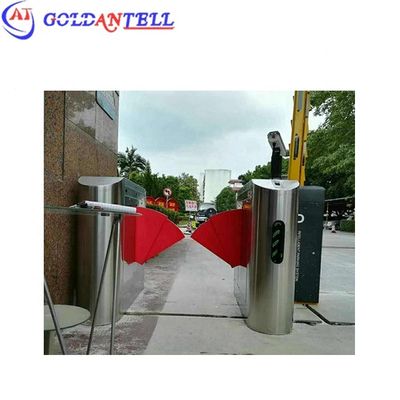

High-Speed 0.2s Turnstile Gate with 304 Grade Stainless Steel and RFID Interface for Secure Access Control
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
Was ist das?:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Bei Bedenken bieten wir rund um die Uhr Online-Hilfe an.
xProduktdetails
| Öffnungszeit der Barriere | 0,2 s | Kommunikationsschnittstelle | RS-232, RS485 |
|---|---|---|---|
| Betriebsrichtung | 2-Wege | Barrieremotor | Bürstenloser Motor |
| Rahmenmaterial | Edelstahl mit 304 Graden | Abmessungen | 1200*280*1000 (Millimeter) |
| Gewicht | 150 ((kg) | Armlänge | 285 (mm) |
| Leistungsspannung | Wechselstrom 110–240 V, 50/60 Hz | Antriebsspannung | 24 V |
| Durchfahrtgeschwindigkeit | 30-40 Personen pro Minute | Arbeitstemperatur | -15°C-75°C |
| Schwungwinkel | 0°-180° | Relative Luftfeuchtigkeit | <95 %, keine Konkretion |
| Schutzklasse | IP54 | ||
| Hervorheben | 0.2s Turnstile Gate,304 Grade Stainless Steel Speed Gate,RFID Interface Flap Barrier |
||
Produkt-Beschreibung
Entrance Control Flexible Security High Quality Electrical Standard Turnstile Flap Barrier Speed Gate with RFID Interface
High-quality electrical standard turnstile flap barrier speed gate with RFID interface for secure entrance control in various environments.
Specifications
| Item | Specification |
|---|---|
| Type | Auto |
| Dimension | 1200*280*1000mm |
| Power | AC 110~240 V, 50/60 HZ |
| Swing angle | 0°-180° |
| Operating Temperature | -15°C-75°C |
| Relative Humidity | <95%, No concretion |
| Communication Distance | ≤1200m |
| Passing Speed | 30-40 Persons/min |
| Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| Communication Connection | RS485 Communication |
| Material | SUS304 |
| Protection class | IP54 |
| Application | Subway Stations, bus stations, parks, schools, factories, Hoverports, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on |
Functions and Features
- Self-examine and alarm function for easy maintenance
- Programmable running status via main board keyboard
- Safety stop when blocked to prevent injuries
- Light and sound alarm for illegal intrusion detection
- Automatic arm locking until opening signal received
- Adjustable arm synchronization
- Automatic reset function with adjustable timing (default 10sec)
- Automatic opening when power off and closing when power on
- Compatible with multiple reader devices (IC/ID, fingerprint, barcode, facial recognition, etc.)
- Optional one-direction or bi-directional operation
- Remote control and management capability
Extendable Functions
- Optional counter
- Housing length options: 1.2m, 1.4m, or 1.6m
- Flap arm material options: acrylic glass, resin, PVC
- Flap arm color options: red, blue, yellow, colorless
Project Example
About Shenzhen Goldantell Technologies Co., Ltd
We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and related security access control systems. We have exported to more than 50 countries and established long-term partnerships with clients worldwide.
Global Customer Base
Our products have been successfully implemented in over 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.
Trade Terms
- Offer valid for 30 days
- Delivery within 7 days after payment
- Payment methods: T/T, LC, Western Union, Escrow, PayPal
- Packaging: Carton box + wooden case/crate
Delivery Options
- Sea freight: 15-60 days depending on destination
- Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
- Air cargo: 2-7 days
Our Services
- 24-hour response to inquiries
- Fluent English-speaking sales and support team
- OEM services including logo printing and custom packaging
- Experienced engineering support
Pre-sale & After-sale Service
- Pre-sale consultation to understand your requirements
- Production updates with photos and testing videos
- Comprehensive installation and operation guidance
- Custom OEM/ODM services for product customization
- 16-hour response time for technical support
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin | Skype: goldantell02
Goldantell turnstiles - factory price, high quality, welcome your inquiry!
