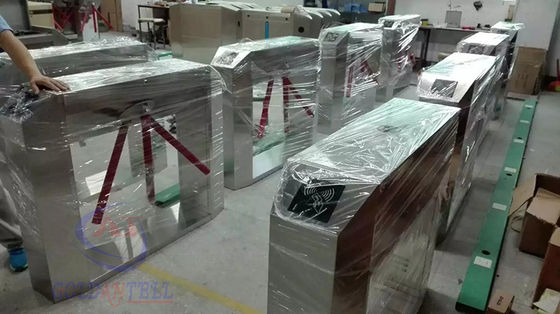

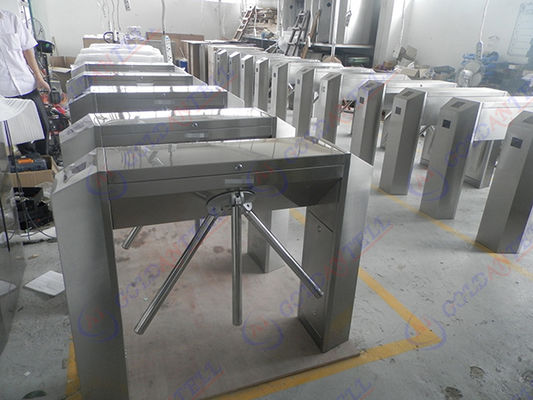

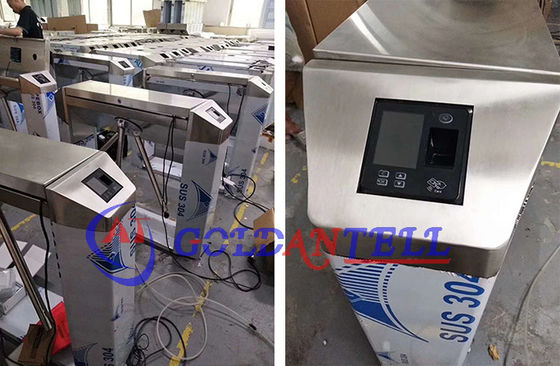

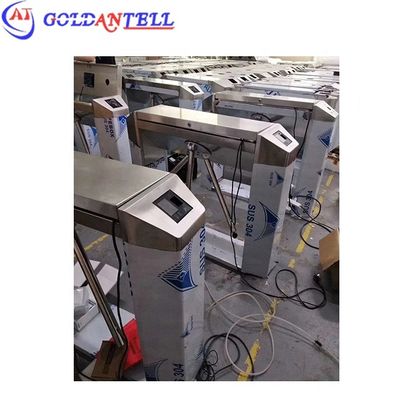

QR Code Card Reader Tripod Turnstile with 0.4s Barrier Open/Close Time and 3 Million Operations Life
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
Was ist das?:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Bei Bedenken bieten wir rund um die Uhr Online-Hilfe an.
xProduktdetails
| Zugangskontrolltyp | ESD-System, Fingerabdruck, RFID-Karte | Öffnungszeit der Barriere | 0,4 s |
|---|---|---|---|
| Kommunikationsschnittstelle | RS-232, RS485, TCP/IP | Betriebsrichtung | 2-Wege |
| Barrieremotor | Gebürstete Motor | Funktion des Drehwerks | Vermeidung von Kollisionen |
| Betriebstemperatur | -10 ℃ -60 ℃ | Wasserdichte Bewertung | IP54 |
| Stromversorgung | AC220V/110V, 100~240V | Wohnungsgrößen | 1200 * 280 * 1000mm |
| Material | Edelstahl 304 | Armlänge | 51 cm |
| Passbreite | 600 mm | Antriebsmotor | DC24V-Magnetventil |
| Normales laufendes Leben | 3 Millionen | ||
| Hervorheben | QR Code Card Reader Tripod Turnstile,0.4s Barrier Open/Close Time Security Turnstile Gate,3 Million Operations Life Access Control Turnstile |
||
Produkt-Beschreibung
QR Code Card Reader Half Height Double Face Recognition Mechanism Tripod Turnstile Zk
Standard Working Performance
- Turnstile can be configured by pressing the button on the main control board
- Auto-lift-arm function: For fully automatic models, the arm lifts automatically with alert when power is restored
- Auto-drop-arm function: The arm drops down automatically (default) or allows free passage when power is off
- Automatic Reset Functions: Cancels authorization if user doesn't pass within set time (adjustable 1-60s)
- Compatible with various systems: door access control, consumption systems, biometric recognition, ESD systems
Technical Parameters
| Size of housing | 1200 L * 280 W * 1000 H (mm) | Material | 304 stainless steel |
|---|---|---|---|
| Direction | Single or bi-directional (optional) | Arm length | 51cm |
| Pass width | 600mm | Waterproof | IP54 |
| Power Supply | 100~240 volt | Drive motor | DC24V solenoid valve |
| LED light | Direction arrow (optional) | Normal running life | 3 million cycles |
Key Features
- Low noise operation with no mechanical impact
- Single or bi-directional configuration options
- High-speed operation with quick response
- Premium design with durable construction
- Robust, rigid, anti-rust and long-lasting
- Smooth working system with self-test function
Additional Functions
- Counting function available (counter)
- Information display option (LCD screen)
- Audible sound prompt (speaker)
- Invalid entry alarm
- Auto-lift-arm function (full automatic models)
Typical Applications
Subway Stations, Airports, Tourism Sites, Sports Venues, Exhibitions, Swimming Pools, Residential Areas, Corporate Entrances, Attendance Systems, Security Checkpoints, Fee Management, Special Access Control
Our Service Commitment
- Pre-sale: Detailed product information and consultation
- During purchase: Production updates with photos and testing videos
- After-sale: Installation guides, manuals, and instructional videos
- Customization: OEM/ODM services including logo, size, and color
- Support: 16-hour response window for inquiries
Frequently Asked Questions
Q: Can your machine work with our card reading system or other access systems?
A: Yes, our turnstiles are compatible with various access control systems.
Q: Can your machine work with Turnstile Doors?
A: Absolutely, integration with turnstile doors is supported.
Q: Is after-sale support available?
A: Yes, we provide warranty service plus ongoing technical support.
Q: Does your machine support WiFi?
A: Yes, we support Wired, WiFi, and 4G module connections.
Q: What is your production lead time?
A: Standard items: 7-15 working days depending on quantity. Custom items require 3-10 additional days.
